Bradbury Stock & Pre-owned Equipment
View the equipment we have available for sale.
+1.620.345.6394
Biegemaster XBend Double Folder 21'
Status: Available Now
Condition: New
- 6400mm – 21’ maximum length with 5 Frames
- Fully automatic gripper system (21 feet - 6 units)
- Automatic sheet loading table (21 feet)
- Taper back-gauge with Grippers for 1250mm throat (21 feet - 16ga - 6 stops)
- Two Station Bending with Grippers (bend 2 parts simultaneously with one operator)
- Servo Hydraulic package (0-145-0 deg in approximately 2 seconds)
- Double finger for narrow part bending
- 24'' Touchscreen Controller
- Slitter with rotated cutting direction right to left
- Immediate Delivery

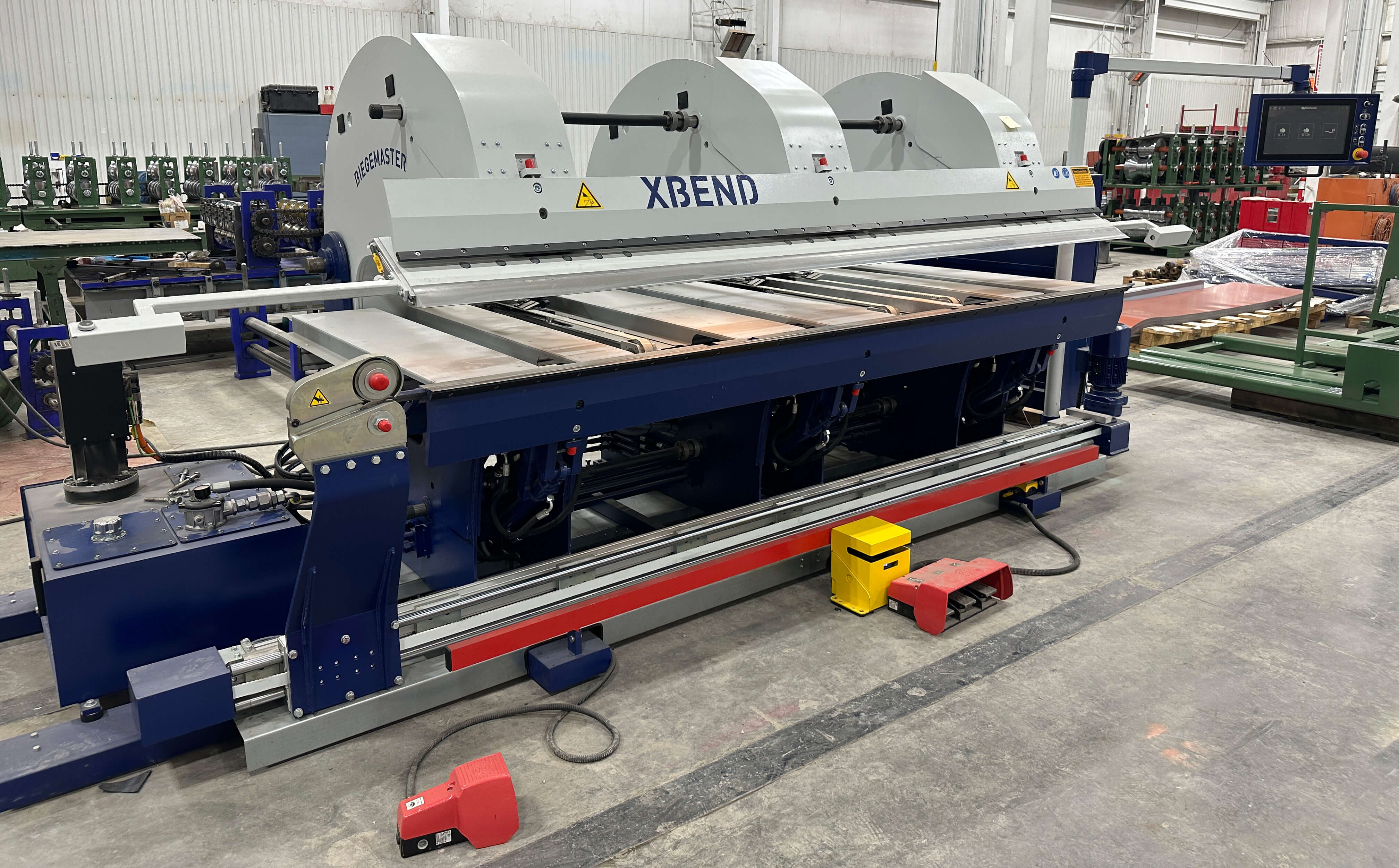

Biegemaster XBend Double Folder 10'
Status: Available Now
Condition: New
- 3100mm – 122” maximum length with 3 Frames
- Fully automatic gripper system with three (3) grippers and three (3) fingers – single motor back gauge, no tapering
- Material thickness adjustment
- High Speed Servo Hydraulic Package
- Slitter with left to right movement
- 18'' Touchscreen Controller
- Immediate delivery
Bradbury Cut-To-Length Line with 14' Stacker
Status: Available Now
Condition: New
Equipment List
- 12,000lb. Entry Coil Car
- 12,000lb. Uncoiler with Hydraulic Expansion and Hydraulic Payoff
- Roller Straightener – Two 5.00” Ø Pinch Rolls, Four 3.00” Ø Work Rolls
- Feeder (150 FPM), Film Applicator, and Mechanical Shear
- Drop Type Stacker – 14’ Capacity with fixed height receiving table with powered side traverse
Specifications
- Maximum Coil Weight – 12,000lbs.
- Coil Inside Diameter – 20” Nominal
- Maximum Coil Outside Diameter – 45”
- Coil Width – 24-49”
- Cut Length – 48-168”
- Mode of Operation - Centerline Justified, Feed-to-stop
- Incoming Power - 460V, 3 Phase, 60 Hertz
- Pneumatic Supply – 100 PSI clean and dry
- Material – Carbon Steel - Grade 33 (0.015-0.048”), Grade 50 (0.015-0.033”)
- Grade 80 (0.015-0.027”)
- - Aluminum – Painted – 24,000 PSI Yield (0.020-0.060”)
-1.png)

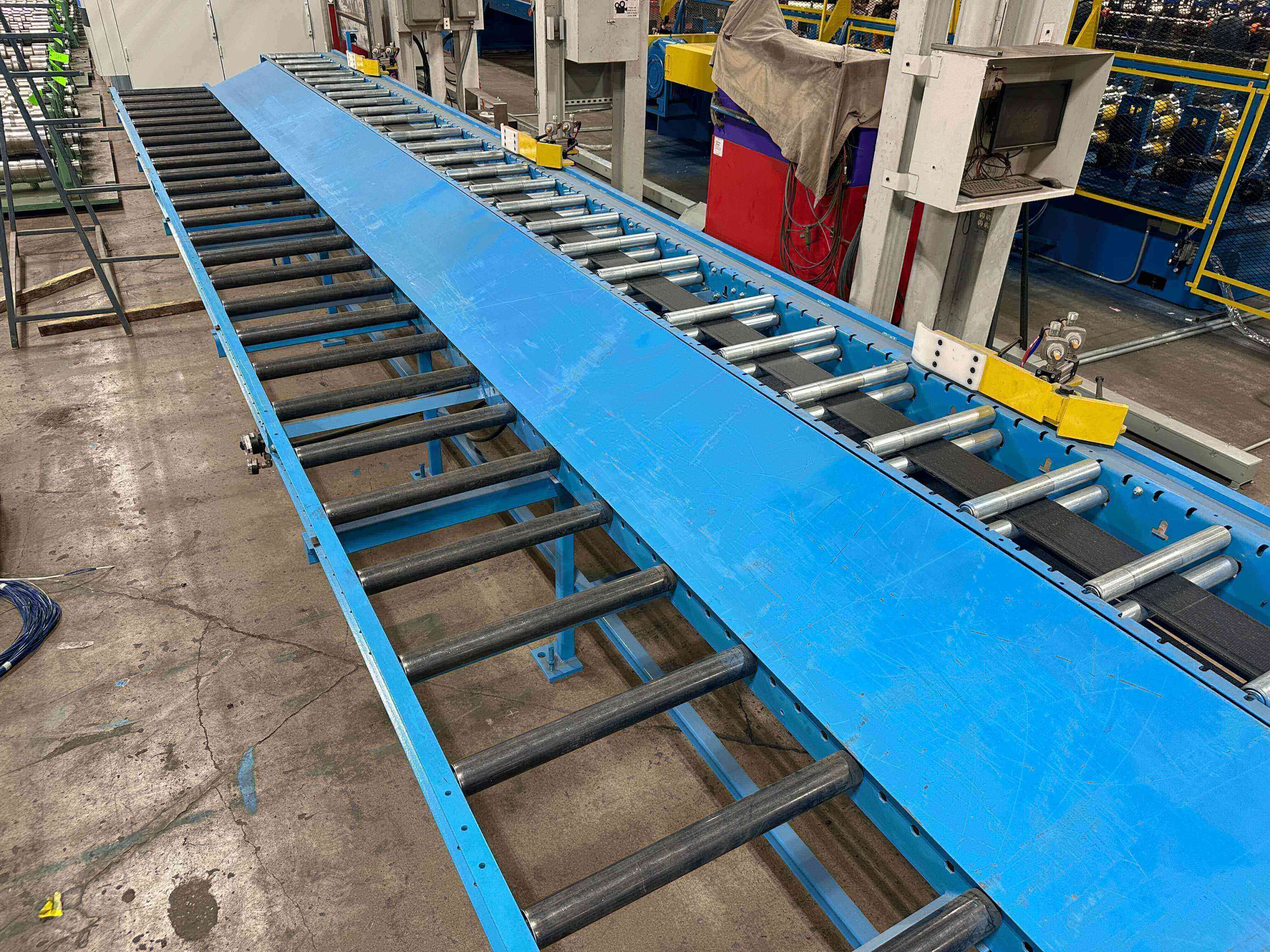

Powered Exit Conveyor with Side Discharge
Status: Available Now
Condition: New
- 40' Exit Conveyor
- 5 Side discharge paddles
- Slide table to the lower conveyor
- Immediate Delivery
Bradbury Recut AG Profile Tooling
Status: Available Now
Condition: Recut
- 3.5" Arbor
- 48" Rollspace
- L6 Thru Hardened Tool Steel
- Recut and Chromed
- 14 Passes
- No straightener Fixture
- No Spur Gears
- Immediate Delivery
Bradbury Industry R Panel Tooling
Status: Available Now
Condition: New
- Pre-Painted, Galvanized and Galvalume
- 60 KSI Yield Min. 70 KSI Yield Maximum– Grade D – 24 Ga.
- 85 KSI Yield Min. 105 KSI Yield Maximum – Grade E – 26 Ga.
- 0.026” Maximum, 0.018” Minimum
- D2 Tool Steel
- 14 Passes
- No Spur Gears
- Immediate Delivery

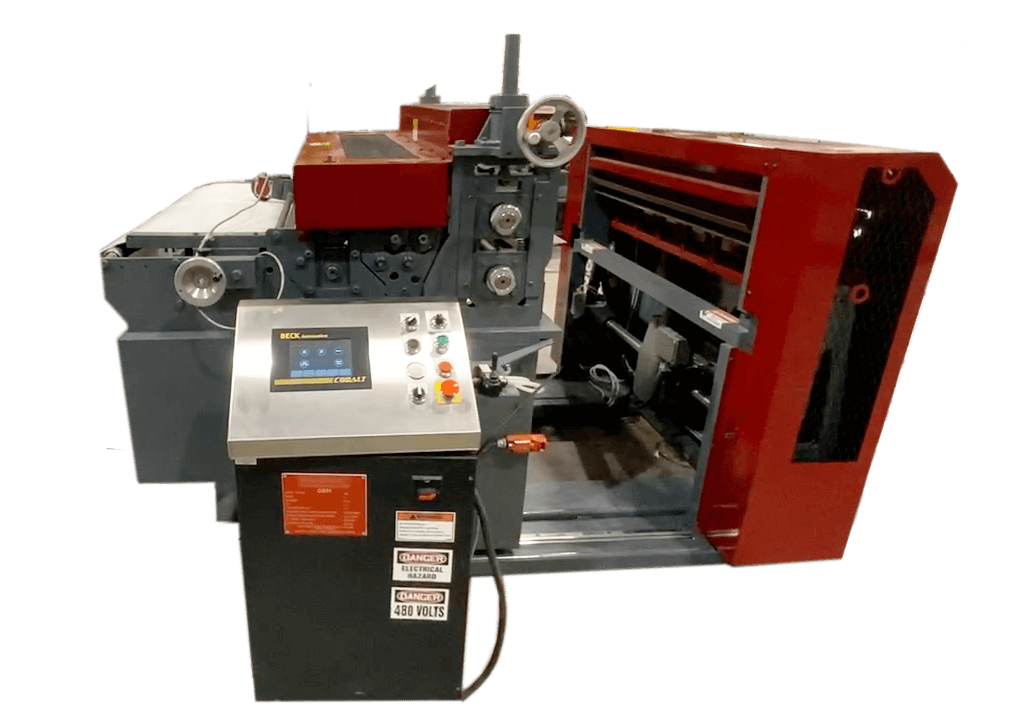

Panther Cub III™ Slit CTL
Status: Available Now
Condition: New
- Slit, Shear, and Recoil
- Moving front end allowing easy access
- Upcut shear
- Beck Automation Cobalt Control

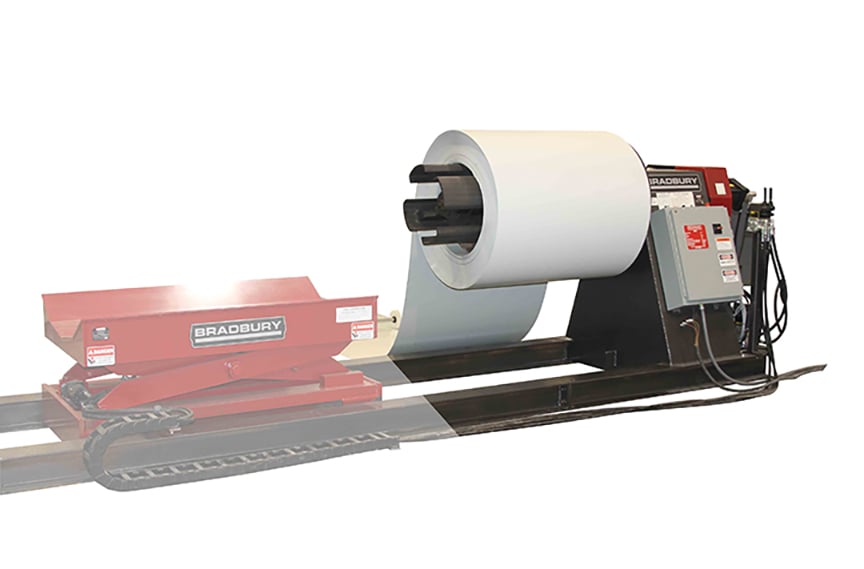

TS12 Uncoiler
Status: Available Now
Condition: New
- Single mandrel, 12,000 lb. (5.4 Metric ton) capacity
- 48 1/2" (1230mm) Maximum material width
- Hydraulic drive payoff with loop control up to 200 FPM
- Hydraulic mandrel expansion
Self-contained hydraulic power unit - Expansion range 18" (457mm) - 21" (533mm)

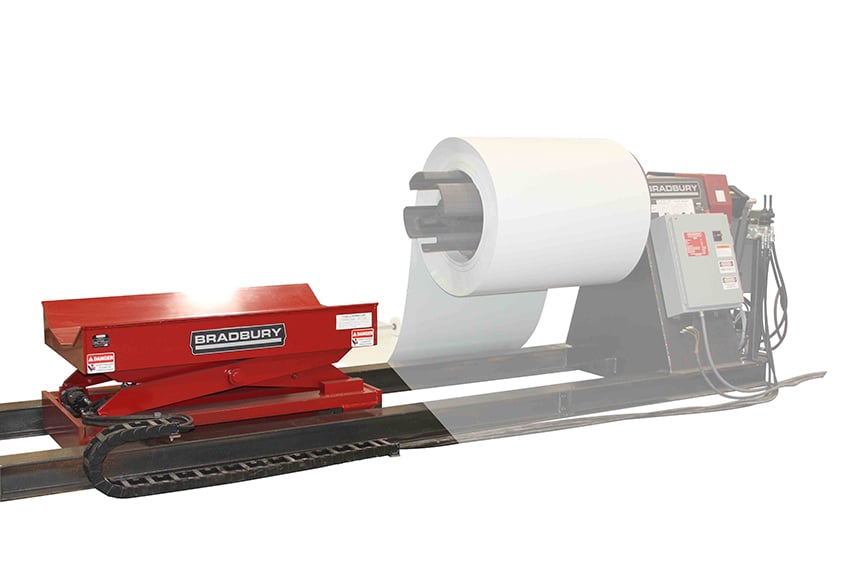

TS12 Coil Car
Status: Available Now
Condition: New
- Cradle type
- 12,000 lbs. (5.4 Metric Ton) capacity
- Maximum coil dimensions: 48" (1220mm) X 45" (1143mm) OD
- Hydraulic power from recoiler unit
- Complete with track and hydraulic drive
- Coil Keepers are available

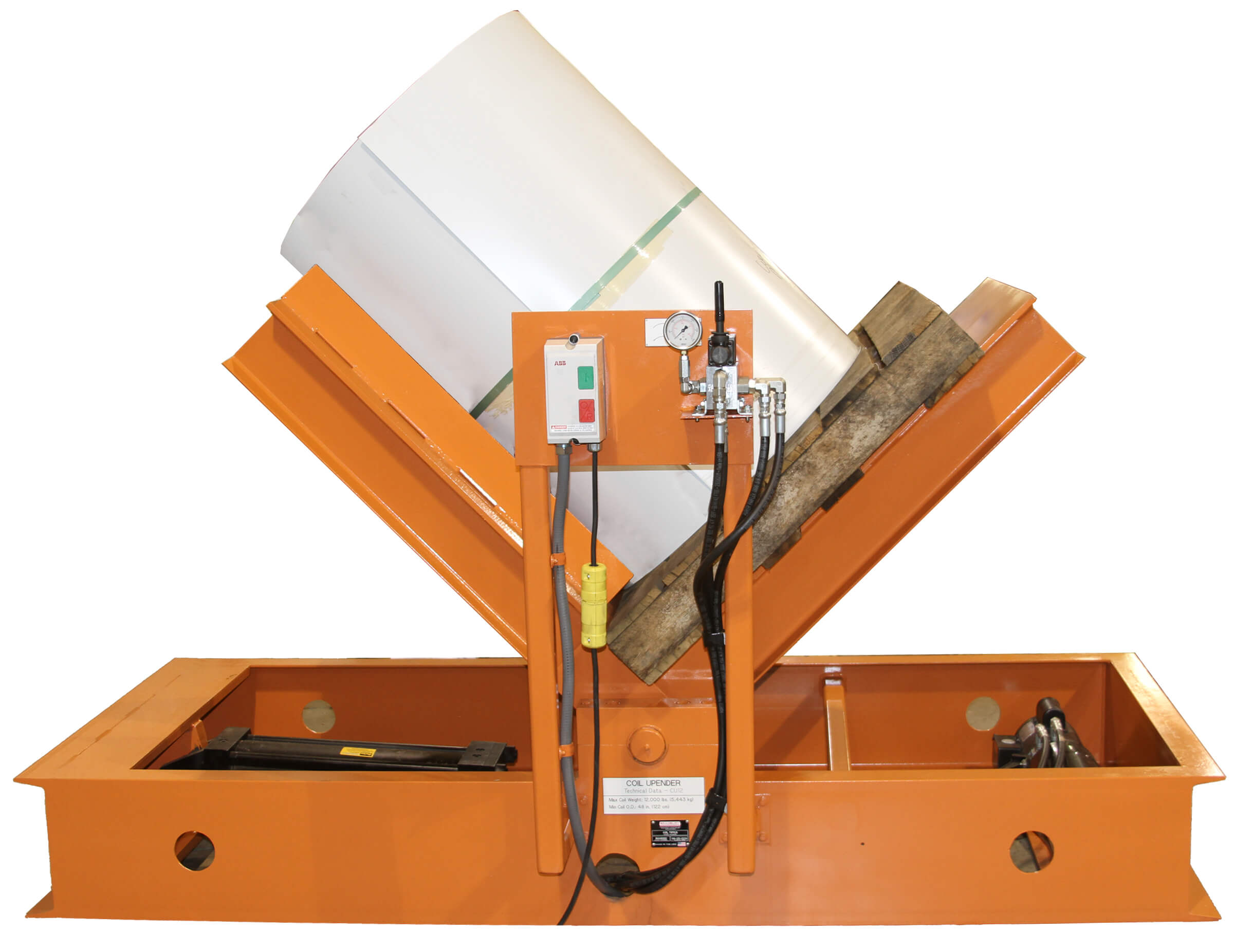

Coil Tipper
Status: Available Now
Condition: New
- 12,000 lb. Capacity
- Maximum Coil Dimensions 48" wide X 48" OD
- Self Contained Hydraulic Power Supply
- Approximate Cycle Time is 1 Minute
- 230 Volt, 60 HZ, 1 PH
