THE PATRIOT™ SHEAR
- Products
- Metal Building and Roofing Manufacturing Equipment
- The Patriot™ Shear
- Coil Processing Equipment
- Garage Door Manufacturing Equipment
- Automotive Components Manufacturing Equipment
- Precision Roller Levelers
- Embossers and Calenders
- Guardrail / Safety Barrier Manufacturing Equipment
- Metal Building and Roofing Manufacturing Equipment
- Decking
- Railroad Component Manufacturing Equipment
- Insulated Sandwich Panel Lines
- Steel Framing Systems
- Automated Production Systems
- Trim Shop Equipment
- Grain Bin Rollforming Equipment
- Controls and Automation
- Stacking Equipment
- Custom Rollforming
- Uncoilers
- Coil Cars
- Recoiler
- Turnstiles
- Coil Tippers and Upenders
- Soffit Rollforming Lines
- Gutter / Rain Water Products

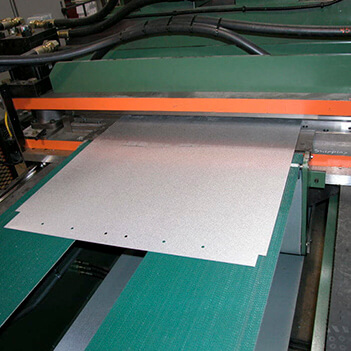

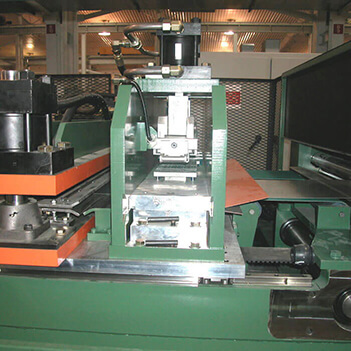

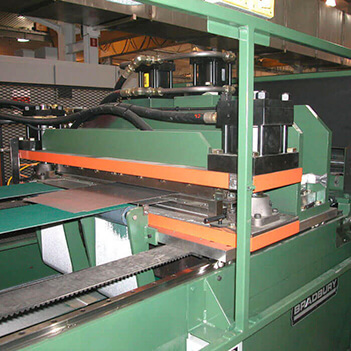

Product Description:
- Notch, Punch, and Cut-off Die on Aluminum Plates
- Servo Drive Assembly with Alpha Gear Reducer
- Encoder bracket and Overrun Clutch
- Short Part Conveyor Belts
- Variable Speed Drive
Advantages:
- Servo accelerated Punch/Notch & Shear Die allows for close coupling with Rollformer minimizing floor space requirements
- Entry cascade with individually adjusted lead-in guide
- Entry straightener with pinch rolls
- Punching, Notching, and Shearing for variable width panel sections
- Material does not stop for Punching/Notching & Shearing, the result is greater net output of finished product
- Integrated slug capture tray (bin by customer)
- Dual timing belt, servo acceleration system
- Two operations in one acceleration move
Standing Seam Roof Panel Line
| Material | Pre-Painted, Galvalume, & Galvanized CRS |
| Material Strength SSR | 70,000 PSI Yield Maximum (Grade “D”) 50,000 PSI Yield Minimum (Grade “D”) |
| Material Strength Building Panel | 80,000 PSI Yield Minimum (Grade “E”) 50,000 PSI Yield Minimum (Grade “D”) |
| Thickness SSR | .030" Maximum, .018" Minimum 22 - 26 Gauge (approximately) |
| Thickness Building Panel | .035" Maximum, .017 Minimum 22 - 29 Gauge (approximately) |
| Rollformer Speed | 50 to 200 FPM Variable Speed |
| Mode of Operation | Flying Prepunch/Prenotch/Precut |
| Cut Length - Precut | 42" Minimum CTL @ 100 FPM 6' Minimum CTL @ 1200 FPM 100 FPM Maximum for Punch/Notch/Cutoff |
| Length Tolerance | +/- 1/8" @ 50' length @ 200 FPM |
Flying Hydraulic Punch / Notch Shear Technical Data
Includes shear and punch / notch units. Mounting holes and slug clearance for lead/trail hole punching included. Punch / notch and cutoff die (48" capable).
| Cutoff | Mounted on shear bolster |
| Hydraulic System | Dedicated hydraulic power unit |
| Panel Capacity | 48" total blade width |
| Speed | 200 FPM maximum speed – Cut Only 100 FPM maximum speed – Notch and Cut |
| Cycle Rate | 20 Cuts per minute maximum punch for Cut Only 10 cuts per minute maximum for punch / notch one end and cut |
| Cut Length without Notch | 40" Minimum, 10' (and longer) @ 200 FPM |
| Length Tolerance | +/- 1/8" |
| Passline | 42" Nominal |
