Hilleng 5 Position Cut-off Unit

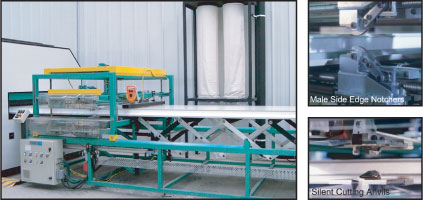

The 5 Position Cut-Off notches the male and female roll-formed edges of wall panel skin and simultaneously cuts and forms a safety edge on the steel skin using specially developed cutting anvils - all in a continuous movement and without altering the line speed. The name of the unit refers to the number of different cut patterns the unit can execute.

5-position-cut-off-unit



Key features of the Hilleng 5 Position Cut-Off unit

  • Cut-Off is PLC controlled and linkable to the Main Press console.
  • Easy touch-screen entry of all batch and cutting parameters.
  • Unit precisely follows programmed data in automatic mode.
  • Set program for straight cuts, offset/stepped cuts, or thermal cuts.
